Carbide Drill Bits Blade SDSA Series ES

Categories	Drilling Tools
Model	CDA Series
material	tungsten carbide
Update Time	Mar 15,2025

Contact Now

Detail Information

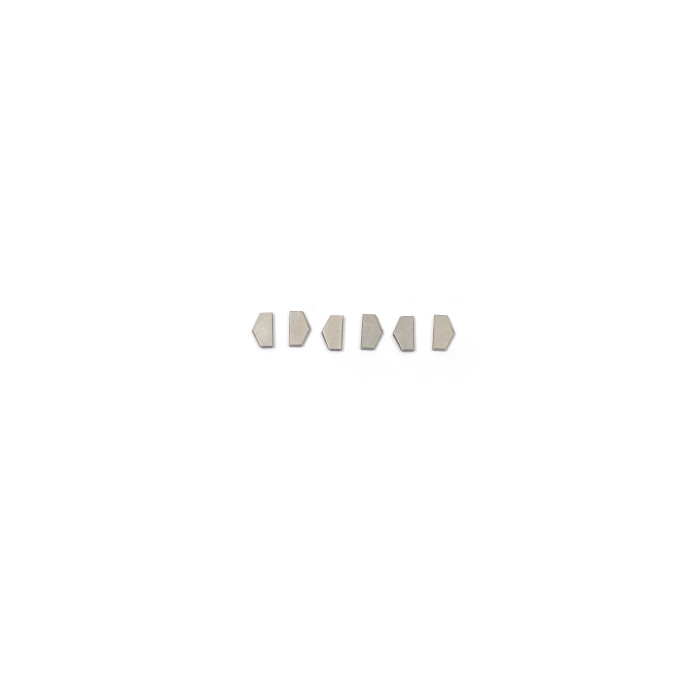

Carbide Drill Bits Blade SDSA Series ES Product Overview

The Carbide Drill Bits Blade SDSA Series ES is engineered for precision drilling in a variety of tough materials. Its robust carbide construction ensures durability and longevity, making it the ideal choice for both professional and DIY applications.

Carbide Drill Bits Blade SDSA Series ES Specification

Code	Size(MM)	D/B.(MM)	Tol.(MM)	D.(MM)	W(MM)	Tol.(MM)	T(MM)	Tol.(MM)	a
SDSA-040	DCB401051	4.0	＋0.35 ＋0.20	4.20-4.35	5.1	＋0.20 ＋0.0	1.0	±0.05	20°
SDSA-050	DCB501251	5.0		5.20-5.35	5.1		1.2
SDSA-060	DCB601448	6.0		6.20-6.35	5.4		1.4
SDSA-065	DCB651454	6.5		6.70-6.85	5.8		1.4
SDSA-070	DCB701657	7.0		7.20-7.35	5.8		1.6
SDSA-080	DCB801860	8.0		8.20-8.35	6.0		1.8
SDSA-085	DCB852063	8.5	＋0.38 ＋0.20	8.70-8.88	6.3		2.0
SDSA-090	DCB902067	9.0		9.20-9.38	6.7		2.0	±0.075
SDSA-100	DCB1002071	10.0		10.20-10.38	7.1		2.0
SDSA-105	DCB1052275	10.5		10.7-10.88	7.5		2.2
SDSA-110	DCB1102278	11.0		11.20-11.38	7.8		2.2
SDSA-120	DCB1202285	12.0		12.20-12.38	8.5		2.2
SDSA-130	DCB1302288	13.0	＋0.41 ＋0.20	13.20-13.41	8.8		2.2		30°
SDSA-140	DCB1402595	14.0		14.20-14.41	9.5		2..5
SDSA-150	DCB1502598	15.0		15.20-15.41	9.8		2.5
SDSA-160	DCB16025100	16.0		16.20-16.41	10.0		2.5
SDSA-170	DCB17025105	17.0		17.20-17.41	10.5		2.5
SDSA-180	DCB18027109	18.0		18.20-18.41	10.9		2.7	±0.010
SDSA-190	DCB19027115	19.0	＋0.54 ＋0.30	19.30-19.54	11.5	＋0.20 ＋0.0	2.7
SDSA-200	DCB20027102	20.0		20.30-20.54	12.0		2.7
SDSA-220	DCB22030123	22.0		22.30-22.54	12.3		3.0
SDSA-230	DCB23030128	23.0		23.30-23.54	12.8		3.0
SDSA-240	DCB24030134	24.0		24.30-24.54	13.4		3.0
SDSA-250	DCB25035139	25.0		25.30-25.54	13.9		3.5
SDSA-260	DCB26035145	26.0		26.30-26.54	14.5		3.5		30°
SDSA-280	DCB28040156	28.0		28.30-28.54	15.6		4.0
SDSA-300	DCB30040166	30.0	＋0.70 ＋0.40	30.40-30.70	16.6		4.0
SDSA-320	DCB32040178	32.0		32.40-32.70	17.8		4.0
SDSA-350	DCB35050185	35.0		35.40-35.70	18.5		5.0
SDSA-360	DCB36050190	36.0		36.40-36.70	19.0		5.0
SDSA-380	DCB38055210	38.0	＋0.80 ＋0.40	38.40-38.8	21.0		5.5

Carbide Drill Bits Blade SDSA Series ES Applications

Ideal for construction professionals and DIY enthusiasts, the SDSA Series ES drill bits are perfect for drilling in concrete, masonry, and hard metals. Whether you are installing fixtures, creating holes for plumbing, or working on renovation projects, these drill bits deliver exceptional performance.

Carbide Drill Bits Blade SDSA Series ES Key Advantages

High durability with carbide construction

Precision-engineered for clean and accurate drilling

Wide range of sizes suitable for various applications

Compatible with SDSA shank systems for easy use

Resistant to wear and tear, ensuring long-term use

Carbide Drill Bits Blade SDSA Series ES Maintenance & Care

To extend the life of your carbide drill bits, ensure proper storage after use, clean them to remove debris, and avoid excessive heat during drilling. Regularly inspect for wear and replace when necessary to maintain optimal performance.

If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.: contact us
